MEASUREMENT OF EMC PARAMETERS

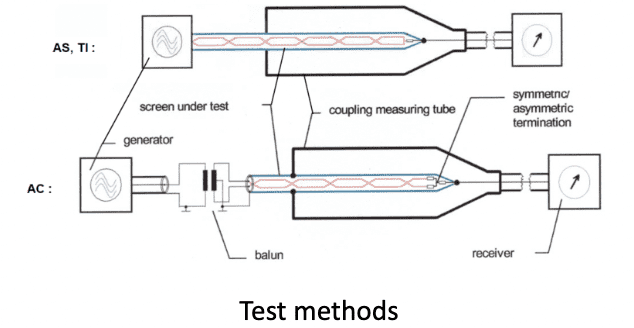

Measuring the Transfer Impedance (TI), Screening Attenuation (AS) and Coupling Attenuation (AC) of cables by using the triaxial method.
Key Features
Specs and Datasheet
Download
Key Features
- Insensitive against electromagnetic disturbances from outside
- No radiation of electromagnetic signals to the environment
- High reproducibility

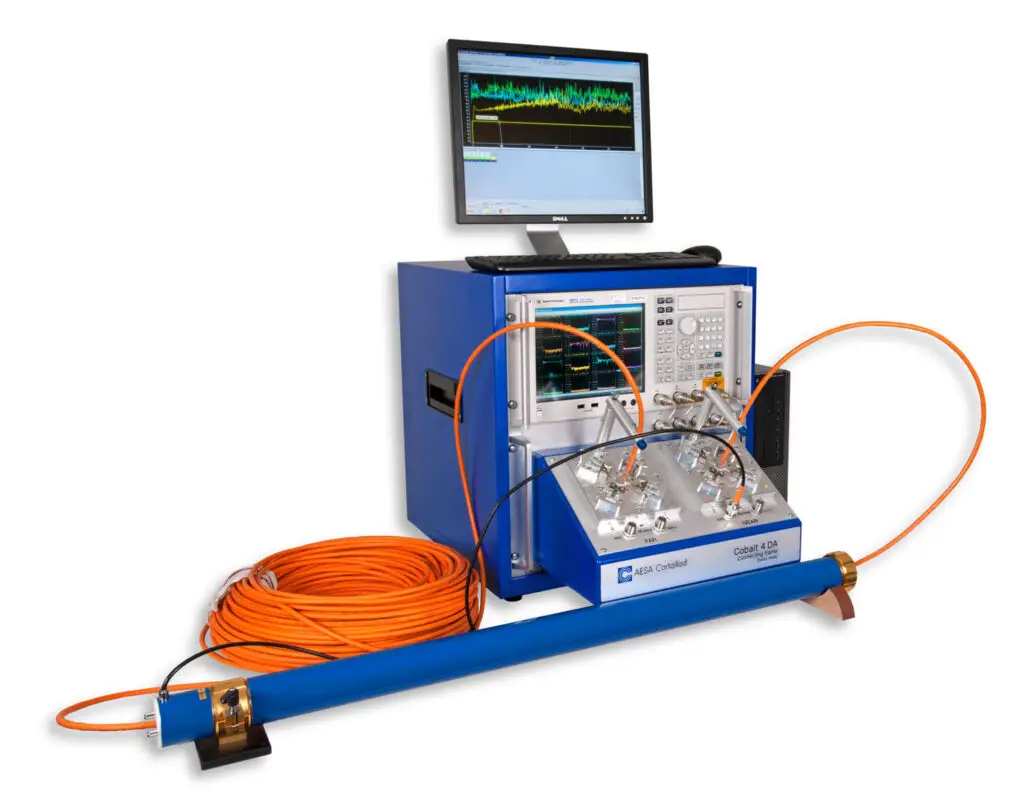

- Can be connected to any AESA devices or directly on a VNA (Vector Network Analyzer)
Specs and Datasheet
- High dynamic range > 125 dB
- Accuracy ± 2 dB on the limit line from 30 kHz to 30 MHz and ± 3 dB up to 3 GHz
